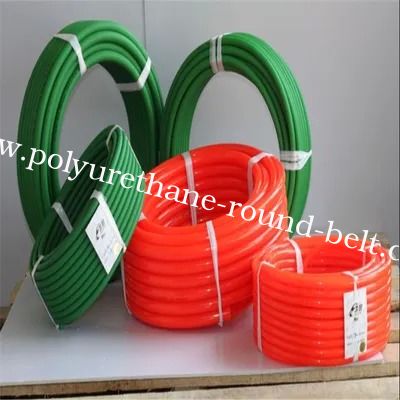

Oil-Resistant Polyurethane Round Belt with Shore A 90 Hardness and Diameter 2-20mm for Drive Transmission
| Cantidad de orden mínima | 1.000 |
|---|---|
| Precio | 0.5 |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Modelo No. | JN20169 | Tipo | Correa de la ronda de la PU |
|---|---|---|---|
| Material | PUS | Material interno | PUS |
| Superficie | Liso o áspero | Resistencia a la tracción | 55N/mm2 |
| Rango de diámetro | 2 ~ 20 mm | Dureza | 85 a ~ 90 a |
| estirar tarifa | 1.5-3% | Tasa máxima de tracción | Kg (varía por diámetro) |
| Mínimo radio | 20 ~ 160 mm | Longitud de rollo | 30 ~ 400 m |
| Fuerza de la lágrima | Alto | Compresión | Bajo |
| Resistencia al impacto | Alto | ||
| Resaltar | Oil-Resistant Polyurethane Round Belt,Shore A 90 Polyurethane V Belt,Diameter 2-20mm PU Round Belt |
||
Descripción de producto
Abrasion-Resistant Polyurethane Round Belt
Our premium polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature poly cord reinforcement and are available with either smooth or rough surfaces to suit various operational requirements.
Product Features
- Exceptional abrasion resistance for extended service life
- High tensile and tear strength for demanding applications
- Resistant to oils, fuels, and oxygen exposure
- Excellent weatherability and impact resistance
- Minimal compression set for consistent performance
- Available in multiple diameters from 2mm to 20mm
- Compatible with various connection methods including hot press welding
Technical Specifications
| Diameter | Min. Bend Radius | Elongation | Max. Tensile | Hardness | Roll Length |
|---|---|---|---|---|---|
| 2mm (0.79") | 20mm | 1.5-3% | 0.3kg (0.7lbs) | 95A | 400m |
| 2.5mm (0.87") | 22mm | 1.5-3% | 0.4kg (0.9lbs) | 95A | 400m |
| 3mm (0.98") | 25mm | 1.5-3% | 0.7kg (1.6lbs) | 90A | 400m |
| 3.5mm (1.18") | 30mm | 1.5-3% | 0.95kg (2.1lbs) | 90A | 400m |
| 4mm (1.38") | 35mm | 1.5-3% | 1.2kg (2.7lbs) | 90A | 200m |
| 5mm (1.57") | 40mm | 1.5-3% | 2kg (4.3lbs) | 90A | 100m |
| 6mm (1.97") | 50mm | 1.5-3% | 3.2kg (7lbs) | 90A | 100m |
| 7mm (2.17") | 55mm | 1.5-3% | 4.1kg (9lbs) | 90A | 100m |
| 8mm (2.56") | 65mm | 1.5-3% | 5kg (11lbs) | 90A | 100m |
| 9mm (2.95") | 75mm | 1.5-3% | 6.8kg (15lbs) | 90A | 50m |
| 10mm (3.94") | 100mm | 1.5-3% | 7.7kg (17lbs) | 90A | 50m |
| 12mm (3.94") | 100mm | 1.5-3% | 12.2kg (27lbs) | 90A | 30m |
| 15mm (4.72") | 120mm | 1.5-3% | 17.7kg (39lbs) | 90A | 30m |
| 18mm (5.71") | 145mm | 1.5-3% | 25.4kg (56lbs) | 90A | 30m |
| 20mm (6.3") | 160mm | 1.5-3% | 31.3kg (69lbs) | 90A | 30m |
Common Applications
Newspaper conveying
Packaging machinery
Ceramic processing
Tile production
Woodworking equipment
Textile machinery
Paper industry
Food processing
Grading machines
