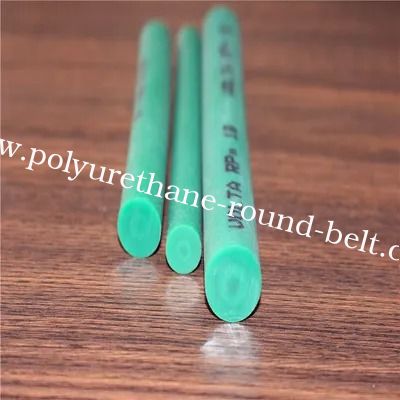

Polyurethane Round Belt PU Round Belt with Diameter 2-20mm Shore A 90 and Acid Alkali Resistance for Drive Transmission

  • Polyurethane Round Belt PU Round Belt with Diameter 2-20mm Shore A 90 and Acid Alkali Resistance for Drive Transmission
Cantidad de orden mínima 1.000
Precio 0.5

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Modelo No. Dia 2 mm-20 mm Tipo Correa de la ronda de la PU
Material PUS Material interno PUS
Superficie Liso o áspero Resistencia a la tracción 55N/mm2
Rango de diámetro 2 ~ 20 mm Dureza Costa (a) 85 ~ 90
estirar tarifa 1.5-3% Longitud de rollo 30m ~ 400m
Mínimo radio 20 mm ~ 160 mm Resistencia a la tracción máxima 0.3kg ~ 31.3kg
Resistencia al aceite Sí Resistencia al ácido Sí
Resistencia al calor Sí
Resaltar

Diameter 2-20mm Polyurethane Round Belt

,

Shore A 90 PU Round Belt

,

Acid Alkali Resistant Polyurethane V Belt
Deja un mensaje
Descripción de producto
Driving Polyurethane Round Belt Supplier

We provide a comprehensive range of Polyester and Polyurethane Round belts designed for industrial transmission applications. Our belts are engineered for transporting various products across multiple industries, from transport and conveyor systems to glass and tile handling.

Product Features
  • Outstanding abrasion resistance
  • High tensile and tear strength
  • Resistance to oils, fuels, and oxygen
  • Excellent weatherability and high impact resistance
  • Low compression set
  • Available with smooth or rough surfaces
  • Reinforced with polyester, nylon, or fibers
  • Can be welded into O-rings
Available Accessories

We supply complete connecting tools and accessories including clamps, electric irons, and knives. Connection methods include hotpress welding and overlap welding.

Applications
  • Newspaper conveying systems
  • Packing machines
  • Ceramic and stoneware processing plants
  • Floor and roof tiles conveying
  • Wood working machinery
  • Textile machines
  • Paper industry machines
  • Food grading and processing machines
Technical Specifications
Items NO. Φ Least Radius of Gyration Stretching Rate Maximum Tensile Rate Hardness Length of Roll
DIA(mm) In mm % Kg | Lbs Shore(A) Roll(m)
2mm0.79201.5-3%0.3 | 0.795400
2.5mm0.87221.5-3%0.4 | 0.995400
3mm0.98251.5-3%0.7 | 1.690400
3.5mm1.18301.5-3%0.95 | 2.190400
4mm1.38351.5-3%1.2 | 2.790200
5mm1.57401.5-3%2 | 4.390100
6mm1.97501.5-3%3.2 | 790100
7mm2.17551.5-3%4.1 | 990100
8mm2.56651.5-3%5 | 1190100
9mm2.95751.5-3%6.8 | 159050
10mm3.941001.5-3%7.7 | 179050
12mm3.941001.5-3%12.2 | 279030
15mm4.721201.5-3%17.7 | 399030
18mm5.711451.5-3%25.4 | 569030
20mm6.31601.5-3%31.3 | 699030

The elastic and flexible PU material (85A~90A) is particularly suitable for lead-in conveyors and vertical shafts.
